China Champion Inverter Pure Sine Wave Output

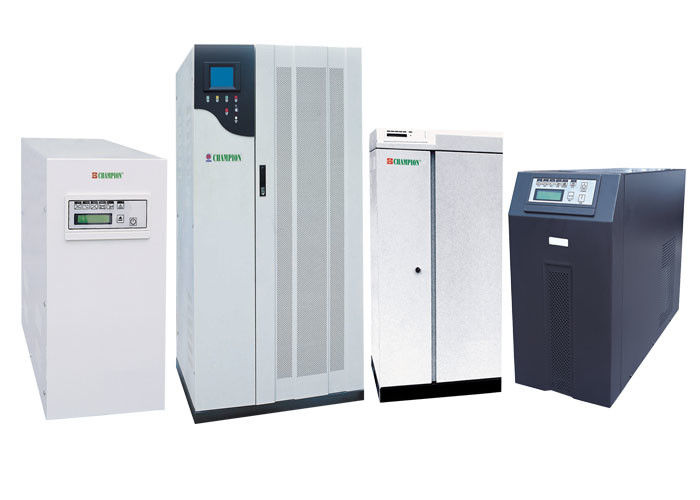

Large Image : China Champion Inverter Pure Sine Wave Output

Product Details:

Place of Origin:	China
Brand Name:	Champion
Certification:	ISO9001, ISO14001, OHSAS18001
Model Number:	1KVA-200KVA

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Packaging Details:	Carton
Delivery Time:	3-4 weeks
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Champion Inverter is the world's most advanced products. This is because it is based on the world's most advanced DSP Sine Wave Technology. It provide all connected applications with a steady source of 100% Pure Power. And it has the character of high efficiency, low noise and simple installation & maintenance. At the same time,all the inverter with output transformer, the DC input is separated from the AC output, so there is no the effect of DC return circuit, so the counter fill rate is the lowest. These inverters are designed for Solar/wind power systems, Telecommunication systems, DC power supply system, Power plant and other industrial machines.

Features

* True Sine Wave output

* DSP based PWM technology

* Constant Voltage & Fequency

* Perfect adaptability for RC&RL load

* Suitable for all equipments

* LCD display for status

* Output with isolation transformer

* Monitoring Software via SNMP/RS232 port.(Option)

Specifications

Single Phase Output Inverter

Model

INV

48E02

INV

48E03

INV

48E05

INV

110E02

INV

110E03

INV

110E05

INV

110E06

INV

110E10

INV

220E02

INV

220E03

INV

220E05

INV

220E06

INV

220E10

INV

220E15

INV

220E20

Rated Power(KVA)

DC Input

48VDC±15%

110VDC±15%

220VDC±15%

Output Voltage

220VAC±1%

Output Frequency

50Hz

Output waveform

True Sine wave

Frequency Stability

≤±0.1%

Crest Ratio

3:1

Total Harmonic Distortion

≤3% (Lineary Load),≤5% (Non-Lineary Load)

Dynamic respond range

≤±5% (Load from 0 to 100%)

Efficiency

≥85%(Lineary Load)

Overload capability

120% rated load: 1 Min.

Cooling

Forced air cooling

Noise(at 1m radius)

≤45dB

≤50dB

≤55dB

Temperature

-10~50℃

Humidity

20%~90%(Non-condensing)

Protection

Overload, Short circuit, Low-Voltage, Over-Voltage, Over-temperature

Three Phases Output Inverter

Model

INV

220T10

INV

220T15

INV

220T20

INV

220T30

INV

220T40

INV

220T50

INV

380T10

INV

380T15

INV

380T20

INV

380T30

INV

380T40

INV

380T50

INV

380T60

INV

380T80

Rated Power(KVA)

DC Input

220VDC±15%

380VDC±15%

Output Voltage

380VAC±1%

Output Frequency

50Hz

Output waveform

True Sine wave

Frequency Stability

≤±0.1%

Crest Ratio

3:1

Total Harmonic Distortion

≤3% (Lineary Load),≤5% (Non-Lineary Load)

Dynamic respond range

≤±5% (Load from 0 to 100%)

Efficiency

≥90%(Lineary Load)

Overload capability

125% rated load: 10 Min; 150% rated load: 1 Min.

Cooling

Forced air cooling

Noise(at 1m radius)

≤60dB

≤68dB

Temperature

-10~50℃

Humidity

20%~90%(Non-condensing)

Protection

Overload, Short circuit, Low-Voltage, Over-Voltage, Over-temperature
